Overview

Everything to run a greenhouse vent on the numbers. A Controller as climate master, an Outdoor Gateway for long-range wireless across the range, CO2 + Climate Sensors at canopy height reading CO2, temperature, humidity, and pressure, and 24 V linear actuators sized to your vent leaves, each with its own fused supply, cable kit, and rod and ball eyes. Sensor and actuator counts are set to your house. The actuator is LINAK TECHLINE IC as standard (LA33 for ridge and sidewall leaves, LA36 for large bays and screens, LA25 for a small hatch), and the Controller drives any actuator with an integrated controller over Modbus RTU or CANopen, so an existing house’s rams can join the bus instead of being replaced. Rules run on site: open on canopy temperature or VPD, hold closed while CO2 is on, override on heat, close on rain or wind when those inputs are added. Stroke is measured off your leaf before the actuator is ordered, so every kit is quoted.
Contact Sales

This kit is sold through our sales team, who will tailor the configuration and quote to your site.

Ships in 4-6 weeks, tested and provisioned for your Growbud network before it leaves. Tracking the day it ships.

Product Details

Everything to run a greenhouse vent on the numbers. A Controller as climate master, an Outdoor Gateway for long-range wireless across the range, CO2 + Climate Sensors at canopy height reading CO2, temperature, humidity, and pressure, and 24 V linear actuators sized to your vent leaves, each with its own fused supply, cable kit, and rod and ball eyes. Sensor and actuator counts are set to your house. The actuator is LINAK TECHLINE IC as standard (LA33 for ridge and sidewall leaves, LA36 for large bays and screens, LA25 for a small hatch), and the Controller drives any actuator with an integrated controller over Modbus RTU or CANopen, so an existing house’s rams can join the bus instead of being replaced. Rules run on site: open on canopy temperature or VPD, hold closed while CO2 is on, override on heat, close on rain or wind when those inputs are added. Stroke is measured off your leaf before the actuator is ordered, so every kit is quoted.

Works with Growbud App Platform

Free Professional-Grade Monitoring and Analytics

Real-Time Monitoring

  • Live sensor data streaming with sub-second updates
  • Customizable alerts and notifications
  • Historical data tracking and trend analysis

Advanced Analytics

  • AI-powered insights and recommendations
  • Multi-sensor comparison and correlation
  • Export data for research and reporting

Download the free Growbud app to unlock the full potential of your Greenhouse Vent Kit

Download on the App StoreGet it on Google PlayOPEN WEB APP

Technical Specifications

In the kit

Controller + Gateway + CO2

A Controller as climate master, an Outdoor Gateway for long-range wireless across the range, CO2 + Climate Sensors at canopy height, and vent actuators with their own 24 V supplies, cable kits, and rod and ball eyes. Counts are set to your house

Actuator

Sized to the vent

LINAK TECHLINE IC as standard: LA33 (5,000 N, 100–600 mm) for ridge and sidewall leaves, LA36 (6,800 N, to 1,200 mm) for large bays and screens, LA25 for a small hatch. Stroke is measured off your leaf plus about 50 mm before it is ordered

Bus

Modbus RTU or CANopen

The Controller is bus master on either. Any actuator with an integrated controller that speaks Modbus RTU or CANopen can be driven the same way, so an existing house's rams can join instead of being replaced. The Controller writes 0–100 % open; position, current, and faults read back. Have actuators already? Email support@growbud.io with the model and we can usually add its profile in days

Climate rules

On the Controller

Open on canopy temperature or VPD, hold closed while CO2 enrichment is on, high-temperature override that beats the hold, and rain or wind close when you add those inputs. All run on site, with or without internet

Power

24 V DC, own supply

Each actuator ships with its own fused 24 V supply. Draw is 9–20 A under load, so it never runs off the Controller's sensor rail

Grows with the house

Add rams and sensors

More vents are more actuators on the same bus; two rams on one leaf run at the same percent. More sensors join the gateway. The kit is quoted to your house

In the Field

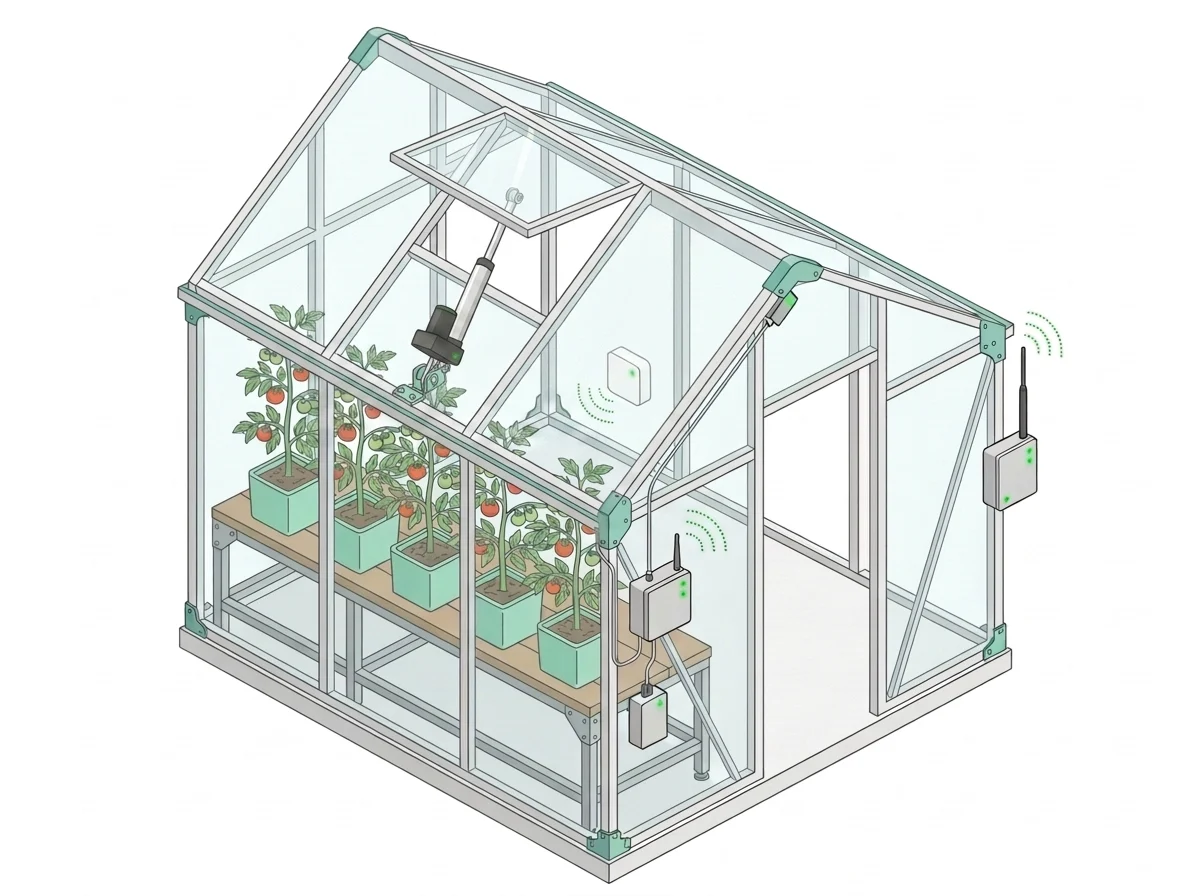

A representative vent install: one actuator on the ridge vent, the Controller and its 24 V supply on a post by the bench, a CO2 + Climate Sensor at canopy height, and the Outdoor Gateway on the end wall. Counts scale with the house.

Greenhouse cutaway with a linear actuator opening the ridge vent, a Controller and 24 V supply on a bench post, a CO2 sensor hanging at canopy height, and an outdoor gateway on the end wall

Ridge vent on the numbers

The CO2 + Climate Sensor reports canopy temperature, humidity, VPD, and CO2 over the gateway. The Controller runs the rules on site and drives the actuator over Modbus RTU or CANopen on the wired bus, with the actuator powered from its own 24 V supply.

  • • Actuator sized to the vent leaf: LA33 as standard, LA36 for large bays
  • • Any integrated-controller actuator on Modbus RTU or CANopen joins the same bus
  • • Open on temperature or VPD, hold shut while CO2 is on, override on heat
  • • Rules and interlocks run on the Controller, with or without internet
